Writing new Nodes

In order to write a new Heron Node one needs to do two things. First create a correct Node folder/file structure and then populate the xxx_com.py and xxx_worker.py scripts with the appropriate code.

The first step is fully described in the ‘Creating a valid Heron Nodes repository from scratch’ paragraph of the Adding Repositories as new Nodes section. The one thing that is beyond the scope of this manual, is not necessary, but is most definitely good practice is to create a repository for the new Node(s), (ideally in the Heron-Repositories GitHub organisation, but anywhere is better than nowhere).

This part of the manual will deal with the second step, that of writing the code in the two Python scripts to create a functional Node.

The Node templates

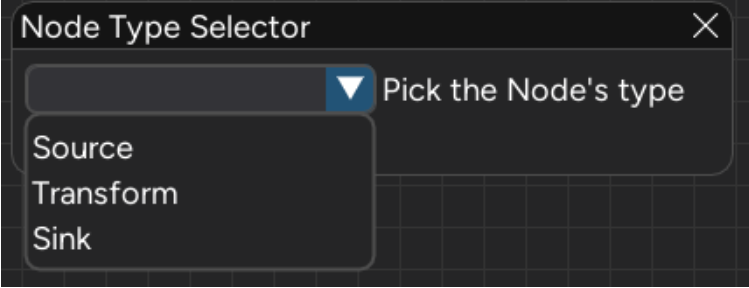

In order to get started with Node writing, the fastest way is to copy into the new Node folder the xxx_com.py and xxx_worker.py template scripts from Heron’s templates directory according to what type of Node you are trying to construct (Source, Transform or Sink). The xxx_com.py scripts for all three types are identical but the xxx_worker.py ones are different. Of course using as a template another Node that is similar in functionality to what you want to achieve is often better than a generic template so also have a look through the code of the existing Heron Nodes in the Heron-Repositories organisation.

In the templates there is code that must not be altered, code that is placeholder for your code and comments clearly marking what is what and giving advice on how to write your own code. If you are new to writing Nodes in Heron read carefully through all the commends of the scripts to familiarise yourself with what you need to do to create a functional Node code base.

Because the template scripts were authored in PyCharm some comments are actually PyCharm editor-fold structures that allow you to minimise and maximize different parts of the scripts. Ignore them if you are not using a JetBrains editor.

The com script

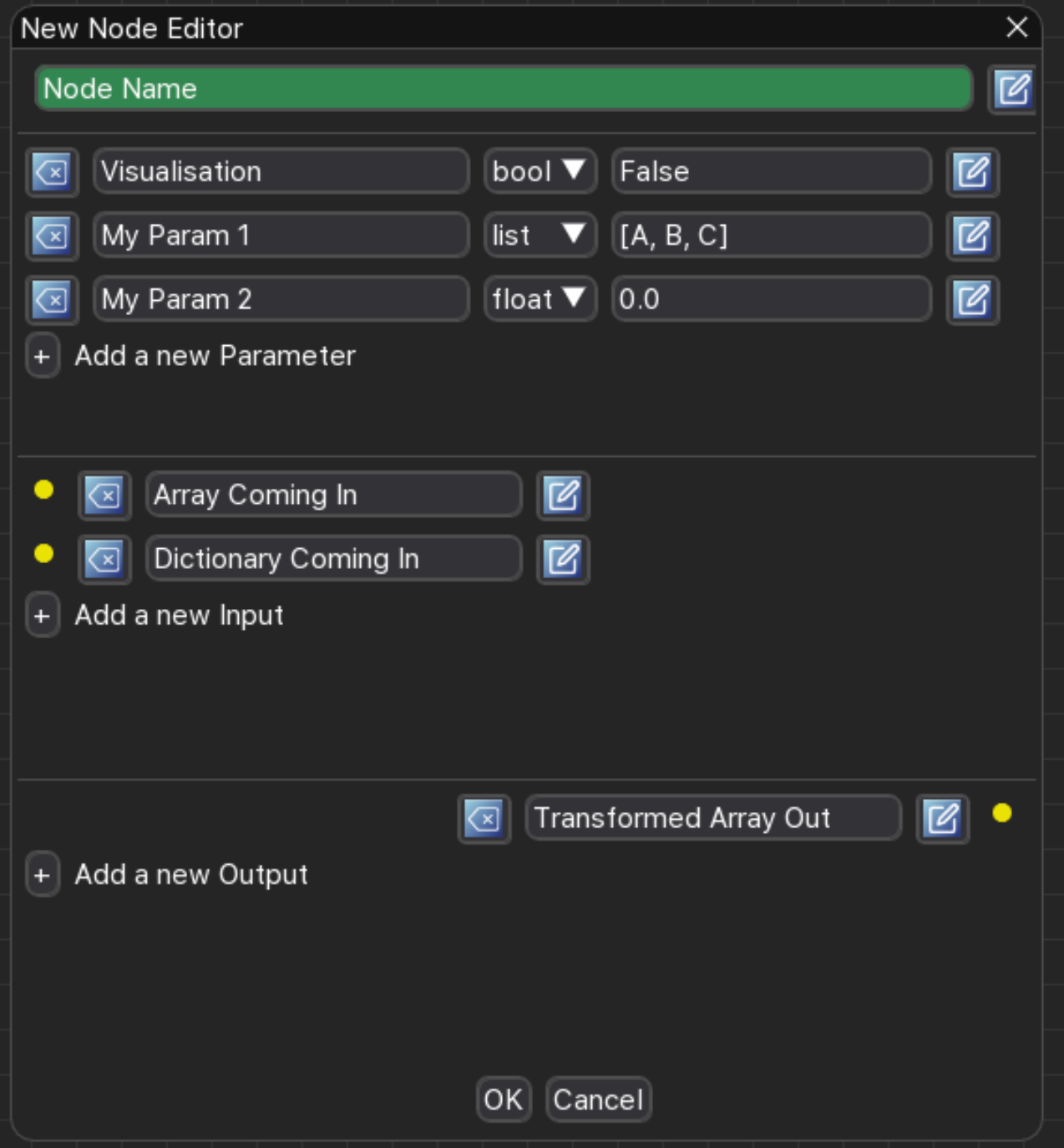

The xxx_com.py script (from now on referred to as simply the com script) deals with the basic definition of the Node.

This definition comprises of the following variables:

BaseName
NodeAttributeNames
NodeAttributeType
ParameterNames
ParameterTypes
ParametersDefaultValues
WorkerDefaultExecutable

The Node’s Name

The BaseName is a string that provides the name of the Node (e.g. ‘Camera’ or ‘My Super Duper Node’):

BaseName = 'My Super Duper Node'

The Node’s Attributes

Each Node can have three types of Attributes. Its inputs (with Type ‘Input’), its outputs (with Type ‘Output’) and its parameters (with Type ‘Static’). The NodeAttributeNames is a list of strings that define the names of the Node’s attributes. If the Node has parameters then by convention the first item in the NodeAttributeNames is ‘Parameters’. So for example a Transform Node with parameters, two inputs and one output would have its Attributes names defined as follows:

NodeAttributeNames = ['Parameters', 'Data A In', 'Data B In', 'Transformed Data Out']

If a string of a NodeAttributeName also has the word ‘Dict’ in it (e.g. ‘Transformed Data Out Dict’) then the Node’s GUI will change the colour of that Input or Output to show to users that this Input is expecting a dictionary or this Output is sending out a dictionary (instead of a numpy array). As mentioned above the type of each Attribute can be ‘Static’, ‘Input’ or ‘Output’. These are defined in the NodeAttributeType entry again as a list of strings (following the same order as in the NodeAttributeNames list). So for the above example the types would be defined as

NodeAttributeType = ['Static', 'Input', 'Input', 'Output']

The Node’s Parameters

The next three entries (ParameterNames, ParameterTypes and ParametersDefaultValues) are there to fully define the parameters of the Node, if it has some. In case the Node doesn’t have any parameters then assign an empty list to all the entries (e.g. ParameterNames = []).

The ParameterNames is a list of strings with the names of the parameters. The ParameterTypes is a list of strings with the type of each parameters (again same order as in the ParameterNames list). The possible types are:

‘str’
‘bool’
‘int’,
‘float’
‘list’

Each parameter according to its type will generate an appropriate element on the Node’s GUI.

The first four types and their GUI elements are self-explanatory. The ‘list’ type is a parameter with a drop-down element.

The ParametersDefaultValues is a list that defines the default values of each of the parameters (what value each parameter gets when a Node is added to the Node Editor). These values must be of the correct type (so a str for a ‘str’ type parameter, int for an ‘int’, etc.) The ‘list’ parameters use their default values, which is a list of strings, to also define the elements of the drop-down GUI element. The default value of these parameters is the first item in this list.

For example if a Node has two parameters, one ‘int’ called My Integer and one list called My Dropdown the above variables would look like this

ParameterNames = ['My Integer', 'My Dropdown']
ParameterTypes = ['int', 'list']
ParametersDefaultValues = [5, ['1st item', '2nd item']]

The Node’s worker script

Finally the Node needs to easily find its worker script for the (most) cases where the worker script runs on the same machine as the Heron GUI and under the same Python environment. In this case the user shouldn’t need to specify where the script is. This is achieved by the WorkerDefaultExecutable variable. Since the worker script is always in the same directory as the com script the WorkerDefaultExecutable variable should always be defined as follows

WorkerDefaultExecutable = os.path.join(os.path.dirname(Exec), 'xxx_worker.py')

where ‘xxx_worker.py’ is the string of the name of the worker script provided by the Node’s developer.

The worker script

The worker script is the script that defines the worker process. It is where the main code of the Node’s functionality is written. That doesn’t mean that the Node cannot have code defined in more scripts, but the worker script (xxx_wroker.py) is the script that the rest of Heron’s communication protocol interacts with.

The worker script like the com script has some code that needs to always exist and is common to all worker scripts. This can be found in the Node templates and is annotated appropriately. The user added code needs to define two functions and can define an optional third one. The optional (but highly recommended) function is the initialisation function. The two required ones are the worker function and the end of life function.

The three functions are defined in the first call in the main if loop of the script. E.g. for Transform Nodes this line would look like:

if __name__ == "__main__":
worker_object = gu.start_the_transform_worker_process(work_function=some_work_function,
                                                      end_of_life_function=on_end_of_life,
                                                      initialisation_function=initialise)

where the some_work_function becomes the worker function, the on_end_of_life function becomes the end of life function and the initialise becomes the initialisation function.

The worker object

Before continuing with the description of the worker script we need to explain what the worker object (named as worker_object in code) is. Each Node type has two classes that define Heron’s basic Node functionality (irrespective of what the Node actually does) and ensure Heron’s communication protocol runs properly. One class is called XXXCom and the other XXXWorker where XXX can be Source, Transform or Sink. When the worker process spins up the first thing that happens is the creation of a worker_object of type XXXWorker (e.g. worker_object = SourceWorker(lots of arguments)).

This worker object is the main way the rest of Heron communicates with the worker process. The Node developer can use the worker_object because it gets passed in some of the worker script functions when they are called (by the worker_object itself). Where this is useful will be discussed further down.

The differences between Source Nodes and Transform and Sink Nodes

Because Transform and Sink Nodes operate on incoming data, their worker function is a callback that Heron’s communication protocol will automatically call every time a new message arrives into the worker process of the Node. On the other hand, in the case of the Source Nodes, the worker function generates its own data so it needs to be developed as a loop that runs for as long as the Node is running. How to do this is clearly shown in the Source template. So in the case of Transforms and Sinks, Heron will call the worker function every time new data come in, while in the case of Sources, Heron will call the worker function only once at the start of the worker process.

The above difference also generates a second difference that has to do with the communication of the worker processes with the Heron GUI process. This communication allows the parameters set in Heron’s GUI to pass to the corresponding worker processes. For more details see the following paragraph on the initialisation function.

Finally this difference means also that the worker functions of the Transforms and Sinks are passed different arguments than the worker functions of the Sources when they are called by the Heron framework. Again for more details keep reading.

The initialisation function

The initialisation function is used in order for the Node to run any initialisation code before it starts calling the worker function. Apart from initialisation code pertaining to the specific Node, all worker processes need to check that they can read the parameters sent from the Heron GUI process. This communication takes some time to initiate during which the worker function must not be called. When a worker process starts, Heron will send the Node’s parameters to the worker process. It will try to do so NUMBER_OF_INITIAL_PARAMETERS_UPDATES times (this variable is set in the constants.py script) with 500ms gap in between. If it fails then the worker process will not function and it will terminate after HEARTBEAT_RATE * HEARTBEATS_TO_DEATH seconds. Every time Heron’s GUI sends parameters to the worker process, the process checks if it has an initialisation function and if it is marked as initialised. If it has an initialisation function and isn’t initialised it will call its initialisation function (which should always try to read the parameters). If it returns True then the parameters have been read (and all other initialisation has been completed) and then the worker process is marked as initialised.

In order for the above mechanism to work the initialisation function must always check if it can read parameters from the worker_object. This is done with code that looks like this

try:
    parameters = worker_object.parameters
    global_var_1 = parameters[1]
    global_var_2 = parameters[2]
    global_var_3 = parameters[3]
    global_var_1 = parameters[4]
except:
    return False

The worker_object is passed as an argument to the initialisation function.

In the case of Transform and Sinks, every time new data come and before the worker function is called, Heron checks if the worker process has been marked as initialised. If this is not the case the worker function is not called and the incoming message is dropped. Once the process is marked as initialised the worker function gets called normally for every new incoming message.

In the case of Sources the worker function gets called only once so the above mechanism is not applicable. The communication between the Heron GUI and the worker process though still might require a little bit of time to be established and before that happens (and thus the parameter values can be known) the infinite loop of the worker function cannot start. Ensuring that the loop starts after the parameters are properly updated is, in the case of Sources up to the Node’s developer. See the worker function paragraph on how this is done.

The worker function

The worker function is where the main code of the Node needs to be constructed. As mentioned above in the case of the Transforms and Sinks this function needs to be a callback while in the case of the Sources the main functionality is an infinite loop.

Sources

The Source Node worker function is passed a single arguments, namely the worker_object we described above. As mentioned above the Source worker function needs to give Heron some time to communicate with the worker process before it starts generating data. This is usually done with a small loop before the infinite loop, which ensures the initialisation function has run properly and the parameters can now be read from Heron’s GUI:

need_parameters = True

while need_parameters:
if worker_object.initialised:
    need_parameters = False
    running = True
    gu.accurate_delay(10)

The worker_object.initialised is how a worker process is marked as initialised or not and it will be true only after the initialisation function returns true.

The worker function of a Source Node does not return anything. In order to push the data generated in every iteration of its infinite loop to the com process of the Node it needs to call the following function:

worker_object.send_data_to_com(result)

where result is what the Node needs to send on and can be either a numpy array of arbitrary dimensions and type or a json compliant dictionary (i.e. a dictionary that can be saved into a json file without errors).

A current limitation of Heron is that Source Nodes cannot have more that one output (the way Transforms and Sinks do).

Transform and Sinks

The worker function fo the Transform and Sink Nodes get passed two or three arguments (i.e. the developer can implement it with either two or three arguments). The two arguments that get always passed are the parameters (as they are currently displayed on the Node’s GUI) and that new data that are responsible for calling the worker function in the first place. The third (optional to implement) argument is a function that allows saving in the Save State System anything the developer wants (see The Saving State System for a description of the use of this argument).

The parameters is a list of the current parameter values.

The data is a list of two items. The first is a string that fully describes the Node and output of the Node that sent the data and the Node and input of the Node that is receiving the data (i.e. that is, the current Node and the name of the input from which the data came through). The format of the topic is

previous_node_output_name##previous_node_name##previous_node_index -> this_node_input_name##this_none_name##this_node_index

An example (of a topic that would connect the Frame Out output of a Camera Node to the Frame In input of a Canny Node) would be:

Frame Out##Camera##0 -> Frame In##Canny##0

The topic is useful for the worker function to distinguish between data coming in from different inputs of the Node or from different output Nodes if multiple Nodes are connected to this Node’s inputs.

The second part of the data list is the actual payload which consists always of a message that needs a little bit of reconstruction. That is achieved with either the

message = Socket.reconstruct_data_from_bytes_message(message)

or

message = Socket.reconstruct_array_from_bytes_message_cv2correction(message)

functions of the Socket class (from Heron.communication.socket_for_serialization import Socket)

The reconstruct_array_from_bytes_message_cv2correction function is used to correct an OpenCV bug that breaks the library if the incoming numpy array has signed data. So use it when dealing with images, or when you want to make sure for some other reason that the numpy array you operate on has unsigned data. The reconstruct_data_from_bytes_message will work with both numpy arrays of arbitrary type and with json compliant dictionaries.

Once the worker function has the topic and the numpy array or dictionary coming into the Node then it can do the work required.

The Transform Nodes also have output. In contrast to the Source Nodes, the worker function of a Transform creates the Node’s output simpy by returning a list of numpy arrays and or dictionaries. The list must be as long as the number of outputs defined for the Node (this is done in the com script as shown above). The order of the numpy arrays / dictionaries is the same as the order of the outputs defined in the com script. If a worker function needs to output nothing to one or more of its outputs then it needs to pass the ct.IGNORE string (as defined in the constants script of Heron) but needs to wrap it in a numpy array: np.array([ct.IGNORE]). So for example a Transform Node with two outputs that should return the array my_array on the first and nothing on the second would have a return statement that looks like this:

return [my_array, np.array([ct.IGNORE])]

If the Node has a single output then the numpy array or dictionary returned still needs to be put in a list:

return [my_array]

There are two more elements of Node scripting, the in Node Visualisation API and the Save State System for saving state which are described in their own documentation.

The end of life function

The final function that must be defined in a worker script is the end of life function. Heron will call this function when the process terminates itself (see the Running a Graph (a Node’s life) paragraph in All about the Nodes). This is where code that deals with gracefully closing down the process should be written (e.g. closing graphical elements, releasing memory, etc.). Since this function has to be defined, if there is nothing to close down then a pass call should be used.
